Part No. 0554 0960

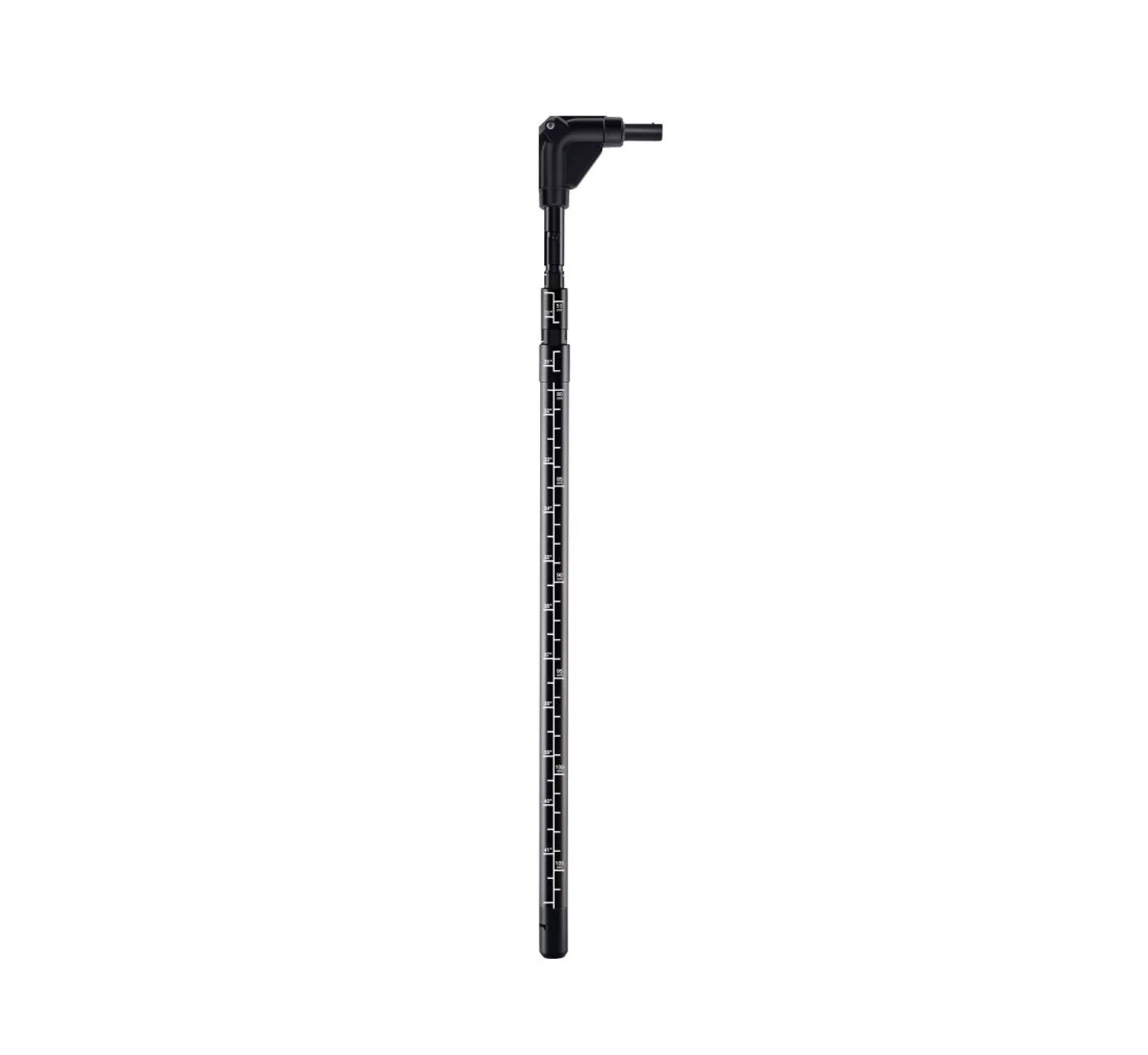

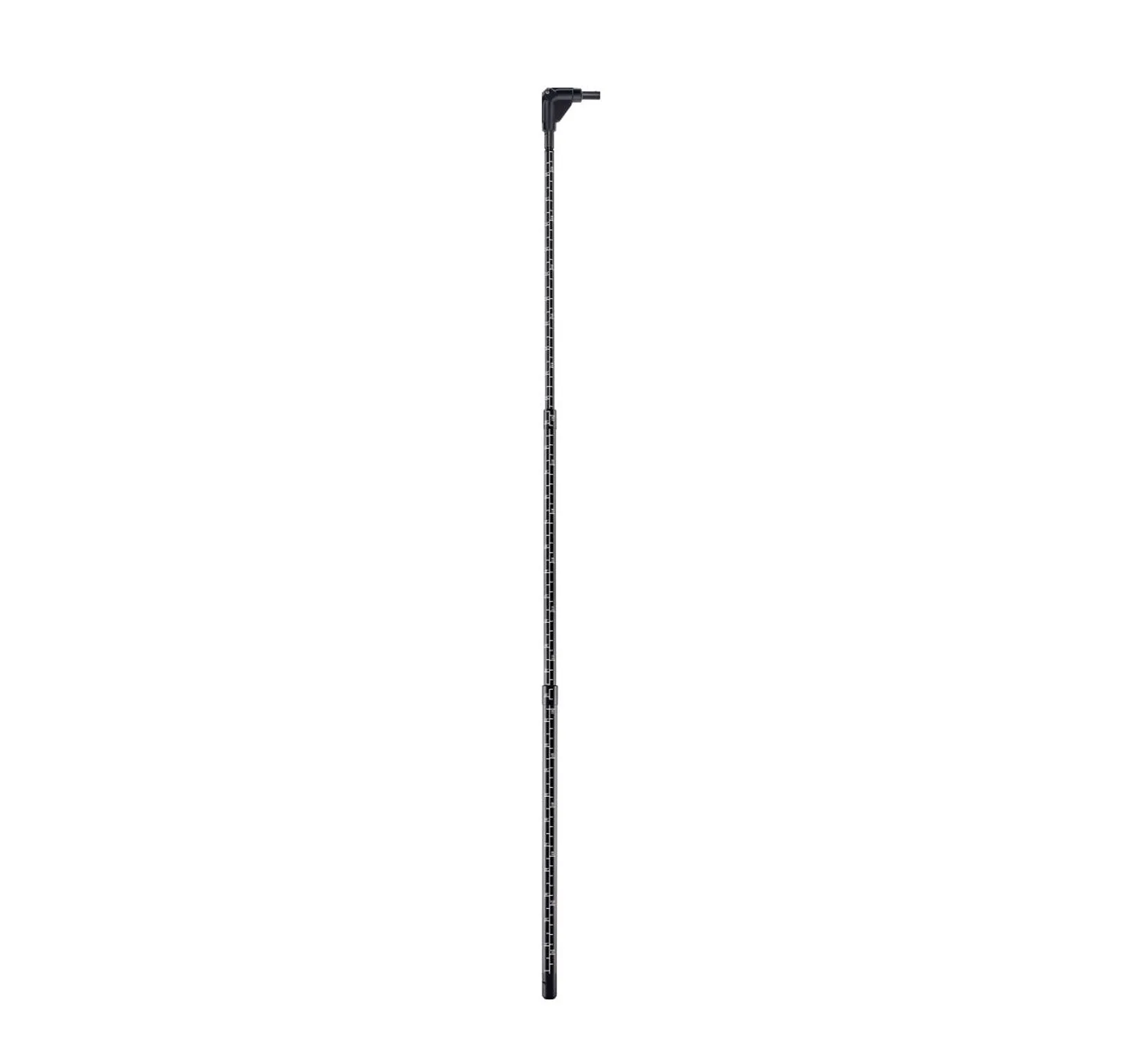

• The telescope is 1.0 m long when extended
• Easy-to-read scaling for easy measurement in ducts
• Includes 90° angle for convenient measurement with 100 mm vane at ceiling outlets
• Sturdy and non-rotatable

The extendable telescope with easy-to-read scaling makes it easier to carry out measurements in ventilation ducts. Thanks to the supplied 90° angle, you can even carry out convenient measurements at ceiling outlets. Use the handle adapter to attach the telescope to air velocity probes with a universal handle with Bluetooth® or cable.

Details

Product Description
Convenient measurements in ventilation ducts and at ceiling outlets: the telescope can be extended up to 1 m in length, it features easy-to-read scaling and is supplied with a 90° angle. Use the handle adapter to plug the telescope onto air velocity probes with a universal Bluetooth or cable handle.

Note: Please note that you need the handle adapter (order number 0554 2160) to use the telescope in conjunction with the universal handle.

Delivery Scope
Extendable telescope (up to 1 m in length) for air velocity probes with universal handle including 90° angle.

Technical Data

General technical data
Dimensions
telescope: 375 x 17 x 16 mm
angle: 65 x 65 x 15 mm

Operating temperature -5 to 50 °C
Length telescope 1,000 mm
Diameter telescope 12 mm
Storage temperature -20 to 60 °C
Weight 155 g
